TLW2-6BL
(4G LTE)
Hardwired Tracker with BLE 5.0
TLW2-6BL hardwired trackers are usually used for tracking powered assets and vehicles. It has more inputs in addition to the basic model TLW2-2BL. It also has ignition detection and output for relay/buzzer/siren. When working with BLE sensors it can monitor the temperature, humidity, door status, etc. It’s a model you go with when you have a more complexed needs in fleet management, logistics, cold chain, etc.
Features
Real time and buffer locations
Real time location updates can be as frequent as 3s. Up to 60,000 location points can be saved in buffer if out of network coverage.
LTEM Global Bands
4G CAT-M1 network global bands with 2G fallback is supported
BLE 5.0 for sensors

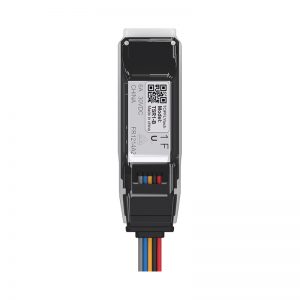

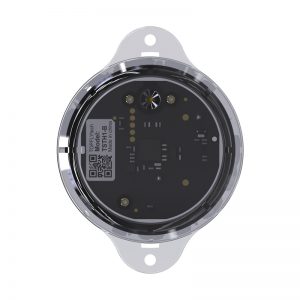

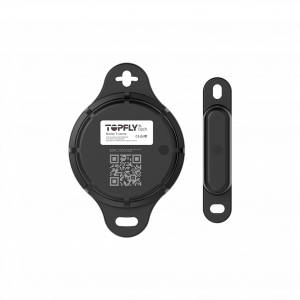

Compatible with TOPFLYtech’s BLE temp & humi sensor TSTH1-B, temp & door sensor TSDT1-B, wireless relay TSR1-B and your own sensors
Ignition on/off alerts
Alerts for engine is switched on or off
Disconnection alerts
Alerts for device disconnected from power
Driving behaviour detection
Detecting reckless driving events such as harsh acceleration, turning,braking, crash and speeding
External power DC 7V - 60V
Wide range of external power supported
Low power consumption
Low power consumption on the asset with the latest technologies
Multiple I/Os
Multiple digital and analog I/Os, compatible with wiring relay, buzzer and siren for vehicle immobilisation for anti-theft
Technical Specifications
CAT-M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
CAT NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
GSM/GPRS: 850/900/1800/1900MHz
GNSS Chipset：MediaTek High Gain GNSS receiver
Parallel GNSS：GPS+Glonass+Galileo+Beidou
Receiver Type：33 tracking / 99 acquisitions- channel GNSS receiver
Position Accuracy (CEP)：Autonomous < 2m
Standalone TTFF：Cold start: < 29s
Warm start: < 27s
Hot start: < 1s
Digital Input: 2
Digital Output：1
Configurable Input (Digital/Analog)：1
Indicator LED：Network and GNSS
FOTA：Yes
BLE (Bluetooth Low Energy)：5.0
Waterproof：IP65
Dimensions：102.5mm*42.5mm*12mm (4.04” *1.67” *0.47”)
Weight：55g (1.94oz)
Backup Battery：Li-Polymer 200 mAh/ 3.7V
Operating Voltage：7V to 60V DC
Operating Temperature：-30℃ ~ +80℃ (-22°F ~ 176°F)
Storage Temperature：-40℃ ~ +85℃ (-40°F ~ 185°F)
Transmit Protocol：TCP, UDP, MQTT, SMS
BLE Accessory Support：Yes
Scheduled Timing/angle/distance Report：Report position and status at preset intervals
External Power Status Alarm：Report when external power is disconnected
Low Power Alarm：Report when backup battery is low
Speeding Alarm：Report when speed exceed the pre-set value
Towing Alarm：From internal 6-axis accelerometer
Remote Control：Remote output control
Network Signal Jamming Detection：Report network jamming
Data Roaming Control：Avoid additional data consumption
Driving Behavior Monitoring：Aggressive driving behavior detection, e.g. harsh braking and acceleration
Crash Detection：Accident data collection for reconstruction and analysis
