CyberLabelX 100
(4G CAT 1）
Battery Powered Asset Tracker
Planned Certificates
CyberLabelX 100 is advanced rechargeable battery powered tracker in extremely slim design, optional temperature or temp&humi probe for wide ranging applications.
Features
Real time and buffer locations
Real time location updates Location points can be saved in buffer if out of network coverage.
Light sensor
Alerts could be sent when device is exposed under light

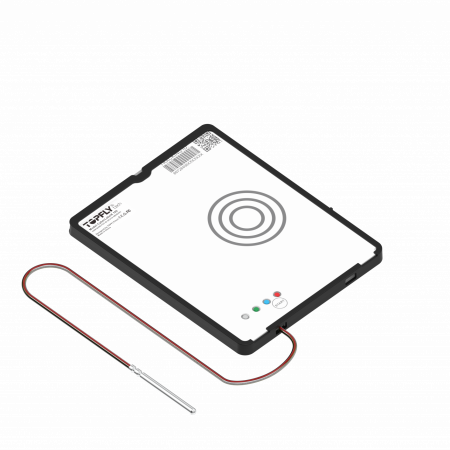

Temperature probe
Optional external temperature or temp&humi probe
Simple installations
It can be simply attached and go in properties
LBS positioning
GPS + LBS positioning for different scenario
Long life battery
Rechargeable 1900 mAh / 3.7V battery
Technical Specifications
LTE FDD Cat 1: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/ B20/B25/B26/B28/B66
LTE TDD Cat 1: B34/B38/B39/B40/B41
GSM:850/900/1800/1900 MHz
1 hour reporting – 57 days
2 hours reporting – 108 days
4 hours reporting – 194 days
GNSS Chipset：Integrated GNSS receiver
Parallel GNSS：GPS + Glonass + Beidou + Galileo +QZSS
Horizontal Position Accuracy
Autonomous: < 1.5 m CEP
Charging Type: Wireless charging
Network and GNSS Antenna：Internal only
LED Indicator：Network, GNSS, alarm and battery
Touch Button: for power on
FOTA：Yes
Ambient Light Sensor: Yes
Motion Sensor: Yes
Temperature Sensor：1 internal, and optional external temperature (or temp&humi) probe
SIM Card: Nano SIM card
Configuration Interface: USB type-c connector
Waterproof: IP54
Dimensions:

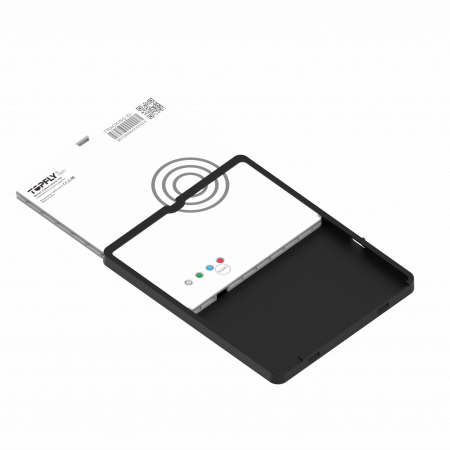

with bracket: 139.1mm*110mm*8.3mm(”5.48 *4.33” *0.33”)
w/o bracket: 138mm*107mm*5.6mm(”5.43 *4.21” *0.22”)
Weight：
with bracket: 128g (4.51oz)
w/o bracket: 100g (3.53oz)
Battery：1900mAh/ 3.7V rechargable battery
Mounting: 3M adhesive, cable zip tie
Operating Temperature：-20℃ ~ 80℃ (-4°F ~176°F)
Transmit Protocol：TCP, UDP, MQTT, SMS
Data Security & Encryption Option: MD5/AES
Alarms：Support up to 25 types of event alarms
